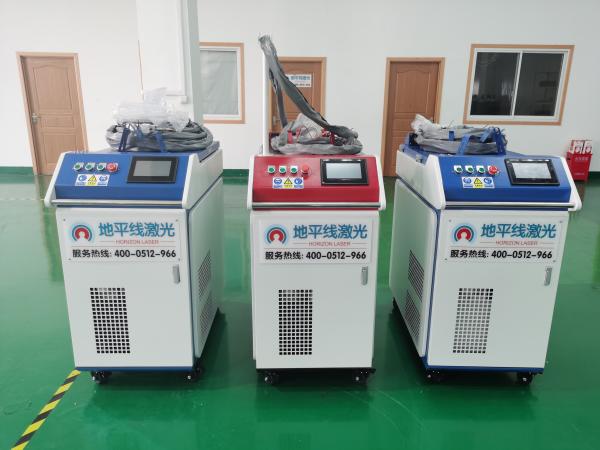

1080nm 1500W Fiber Laser Welder Water Cooling Swing Welding Head

Product Categories

Suzhou Horizon Laser Technology Co., Ltd.

Contact Now

Name: 1080nm 1500W Fiber Laser Welder Water Cooling Swing Welding Head
Brand: Horizon laser
Price: 1 USD

Brand Name : Horizon laser

Model Number : DPX-W1500

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 3~5 days

Packaging Details : Wooden box

Power : 1500W

Cooling type : Water cooling

Welding thickness : 0.5~4mm

Welding head type : Double pendulum, adjustable spot

Contact Now

1500W Handheld Laser Welding Machine

Parameters:

model	DPX-W1000	DPX-W1500	DPX-W2000
Laser type	Continuous fiber laser
Rated output power	1000W	1500W	2000W
Power adjustment range	10%～100%
Laser center wavelength	1080±3nm
output method	Continuous/modulation
Maximum modulation frequency	50kHz
Power instability	<3%
Fiber output interface	QBH
Indicating system	Red light
Length of welding torch cable	8m/15m
Torch type	Swing welding head
Collimated focal length	60mm
Focus focal length	150mm (optional)
Torch weight	About 0.8 kg
Protective gas	Coaxial protection
Adjustable weld width	0～5 mm
product structure	All-in-one
Product size LDH	11007501580mm
product weight	300kg		350kg
Working temperature	0～40℃
Working environment humidity	<70%
Operating Voltage	Single-phase 220VAC (must be grounded) / three-phase 380VAC (must be grounded)
Total power	<5kw	<7kw	<9.5kw

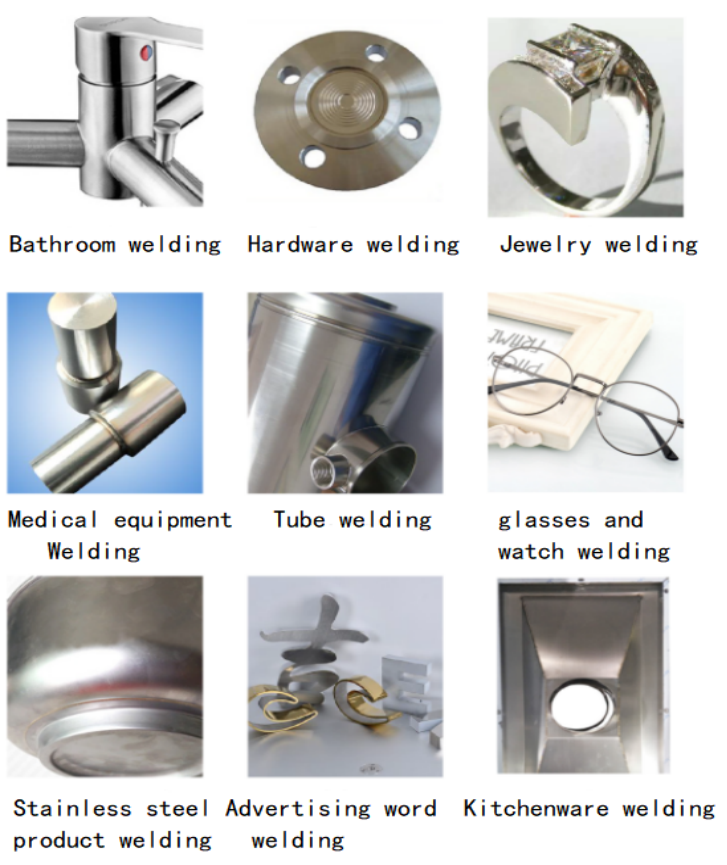

Welding samples:

1080nm 1500W Fiber Laser Welder Water Cooling Swing Welding Head

Advantages:

1080nm 1500W Fiber Laser Welder Water Cooling Swing Welding Head
