1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover

Brand Name : Horizon Laser

Model Number : DPX-J3015

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T, L/C

Supply Ability : 500 sets per year

Delivery Time : 30 working days

Packaging Details : suitable for long-distance sea transportation

Laser source : IPG/MAX

Cutting head : Precite/Raytools

Cooling type : Water cooling

Cutting material : Stainless steel, carbon steel, aluminum , brass etc.

Contact Now

Parameters

Device model 3015 Exchange platform laser cutting machine
Laser power 1000W/1500W/2000W/3000W/4000W
Laser wavelength 1080+-10 nm
Power stability <±3%(Short-term);<±5%(Long-term)
Acceleration 1.2G
Effective cutting range 3050×1550mm
Workbench axial positioning accuracy ≤±0.03㎜/m
Worktable repeat positioning accuracy ≤±0.02㎜/m
electricity demand 380V/50Hz

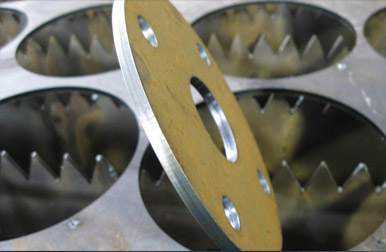

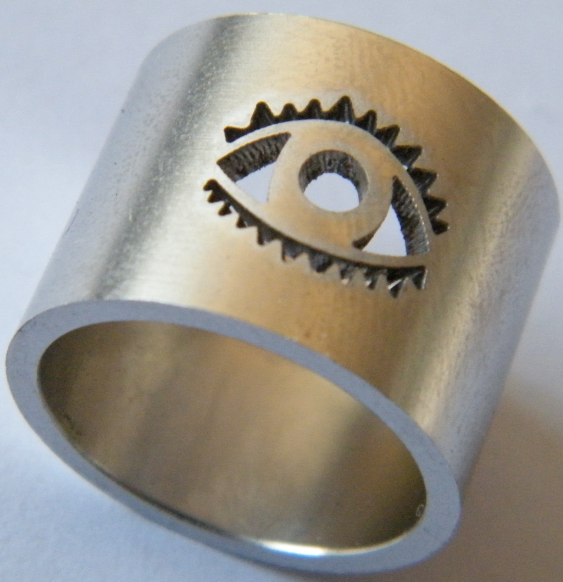

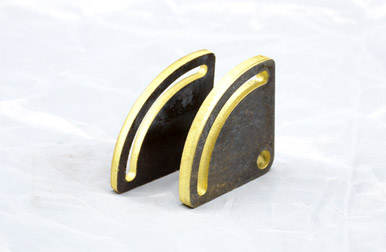

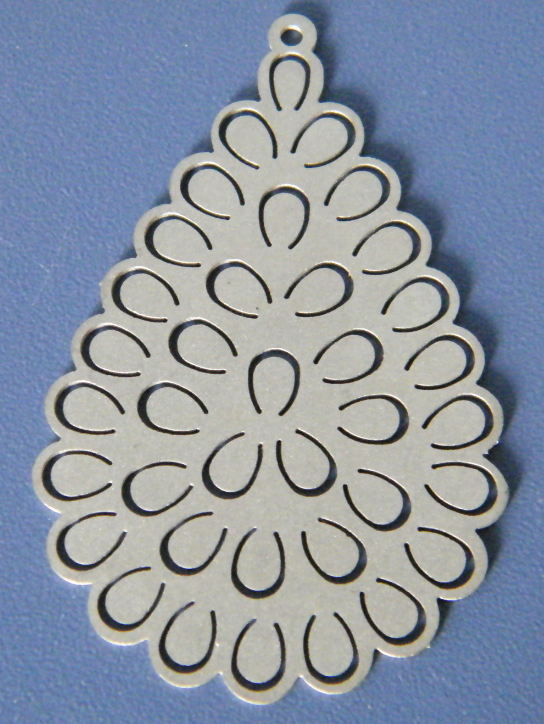

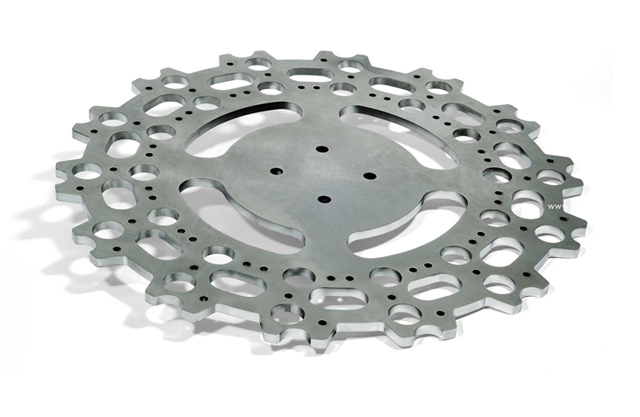

Cutting samples:

1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover1500W 4000W CNC Fiber Laser Cutting Machine IPG MAX 3015 Exchange Table With Cover

Machine Characteristics

1. Fully enclosed structure: safer operation. Doors are set on one end and one side of the machine for easy operation.

2. Stable and practical: steel bar welding bed, high temperature tempering treatment, stress relief, machine tool deformation can be controlled within ±0.02mm;

3. Industrial aesthetic design: beautiful appearance design, simple atmosphere;

4. High-quality cutting: high-precision anti-collision laser cutting head to ensure the best cutting effect;

6. Fiber laser: laser power is stable and reliable, top brand, guaranteed performance;

7. Cooling method: circulating water cooling

Main Advantages

  • High stability: The design of the fiber laser optical path improves the beam quality while ensuring high-power laser output. The beam is transmitted in the optical fiber without contact with the air to avoid polluting the optical path, and has long-term stability. Therefore, large laser cutting machines can be used in industrial environments with longer working life and higher requirements.
  • High-speed dual-motor exchange table:The independent movement of the two tables is unrelated, the accuracy is not affected by each other, and there is no need to pause to clean the residue, which is more efficient and convenient;
  • Carbon structure steel plate welded machine bed: The overall structure has good rigidity, fast heat dissipation, and anti-deformation; long-term high-speed operation can maintain the stability of the machine bed.
  • Fully enclosed structure: more environmentally friendly,beutiful and safer.
